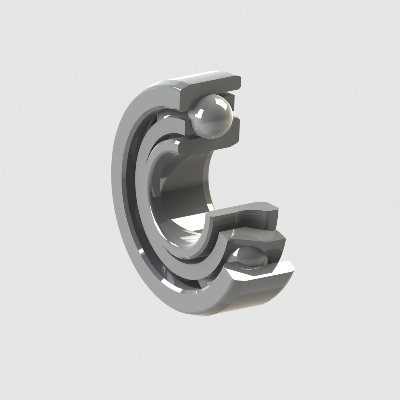

Single Row,
Angular Contact Ball Bearings
Single Row,
Angular Contact Ball Bearings
- What is Bearing ?
- Interior Design of Bearings
- Bearing Assembly and Disassembly
- Bearing Code Reference
- Types of Bearings
-
Our Products
- Single Row Deep Groove Ball Bearings
- Single Row Deep Groove Ball Bearings With Filling Slots
- Single Row Angular Contact Ball Bearings
- Double Row Angular Contact Ball Bearings
- Double Row Angular Contact (With Two İnner Rings) Ball Bearings
- Self Aligning Ball Bearings
- Four Point Contact Ball Bearings
- Cylindrical Roller Bearings
- Tapered Roller Bearings
- Catalog
7200
72 | 72 B
| Bearing Type | Dimensions | Load Rating | Speed Limit | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| d | D | B | rsmin | rmin | a | CISO | C0 ISO | Thermal Reference | Grease | Oil | |
| (mm) | (kN) | ng (rpm) | |||||||||
| 7220 | 100 | 180 | 34 | 1,1 | 2,1 | 76 | 138,95 | 121,85 | 4 500 | 4 000 | |
7300
73 | 73 B
| Bearing Type | Dimensions | Load Rating | Speed Limit | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| d | D | B | rsmin | rmin | a | CISO | C0 ISO | Thermal Reference | Grease | Oil | |
| (mm) | (kN) | ng (rpm) | |||||||||
| 7310 | 50 | 110 | 27 | 1 | 2 | 47 | 68,2 | 47,88 | 6 100 | 8 000 | |
| 7311 | 55 | 120 | 29 | 1 | 2 | 52 | 78,75 | 56,33 | 5 700 | 7 000 | |
| 7320 | 100 | 215 | 47 | 1,1 | 3 | 90 | 201,62 | 188,71 | 3 600 | 4 000 | |
