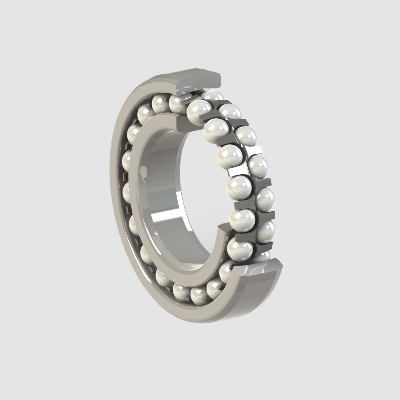

Self Aligning Ball Bearings
Self Aligning Ball Bearings
- What is Bearing ?
- Interior Design of Bearings
- Bearing Assembly and Disassembly
- Bearing Code Reference
- Types of Bearings
-
Our Products
- Single Row Deep Groove Ball Bearings
- Single Row Deep Groove Ball Bearings With Filling Slots
- Single Row Angular Contact Ball Bearings
- Double Row Angular Contact Ball Bearings
- Double Row Angular Contact (With Two İnner Rings) Ball Bearings
- Self Aligning Ball Bearings
- Four Point Contact Ball Bearings
- Cylindrical Roller Bearings
- Tapered Roller Bearings
- Catalog
1200
12 | 12 K
| Bearing Type | Dimensions | Load Rating | Speed Limit | ||||||
|---|---|---|---|---|---|---|---|---|---|
| d | D | B | rmin | CISO | C0 ISO | Thermal Reference | Grease | Oil | |
| (mm) | (kN) | ng (rpm) | |||||||
| 1205 | 25 | 52 | 15 | 1 | 12,11 | 3,31 | 13 000 | 14 000 | 18 000 |
| 1206 | 30 | 62 | 16 | 1 | 15,64 | 4,70 | 11 000 | 12 000 | 15 000 |
| 1207 | 35 | 72 | 17 | 1,1 | 15,78 | 5,14 | 9 500 | 10 500 | 13 000 |
| 1208 | 40 | 80 | 18 | 1,1 | 19,24 | 6,51 | 8 600 | 8 800 | 11 000 |
| 1209 | 45 | 85 | 19 | 1,1 | 21,80 | 7,36 | 8 000 | 8 800 | 11 000 |
| 1210 | 50 | 90 | 20 | 1,1 | 22,71 | 8,09 | 7 600 | 8 200 | 10 000 |
| 1211 | 55 | 100 | 21 | 1,5 | 26,79 | 10,04 | 6 900 | 7 500 | 9 000 |
| 1212 | 60 | 110 | 22 | 1,5 | 30,15 | 11,56 | 6 300 | 7 100 | 8 500 |
| 1213 | 55 | 120 | 23 | 1,5 | 30,99 | 12,37 | 5 900 | 5 800 | 7 000 |
| 1214 | 70 | 125 | 24 | 1,5 | 34,65 | 13,69 | 5 700 | 5 800 | 7 000 |
| 1215 | 75 | 130 | 25 | 1,5 | 38,84 | 15,54 | 5 500 | 5 600 | 6 700 |
| 1216 | 80 | 140 | 26 | 2 | 39,83 | 16,93 | 5 100 | 5 000 | 6 000 |
2300
23 | 23 K
| Bearing Type | Dimensions | Load Rating | Speed Limit | ||||||
|---|---|---|---|---|---|---|---|---|---|
| d | D | B | rmin | CISO | C0 ISO | Thermal Reference | Grease | Oil | |
| (mm) | (kN) | ng (rpm) | |||||||
| 2305 | 25 | 62 | 24 | 1,1 | 24,45 | 6,53 | 11 800 | 13 300 | 16 000 |
